Overview

Why SnapRTC?

Ever start filling out a form on your desktop and then it asks you to upload a picture of your ID?

Then you take out your phone to take a picture, upload it to the cloud, and download it on your desktop before uploading it to continue the form?

Yup, we’ve all done that. That’s what SnapRTC wants to solve.

SnapRTC is a headless, peer-to-peer implementation of content exchange between two devices. This means that you can bring your own UI and integrate it into your existing forms.

SnapRTC is not novel

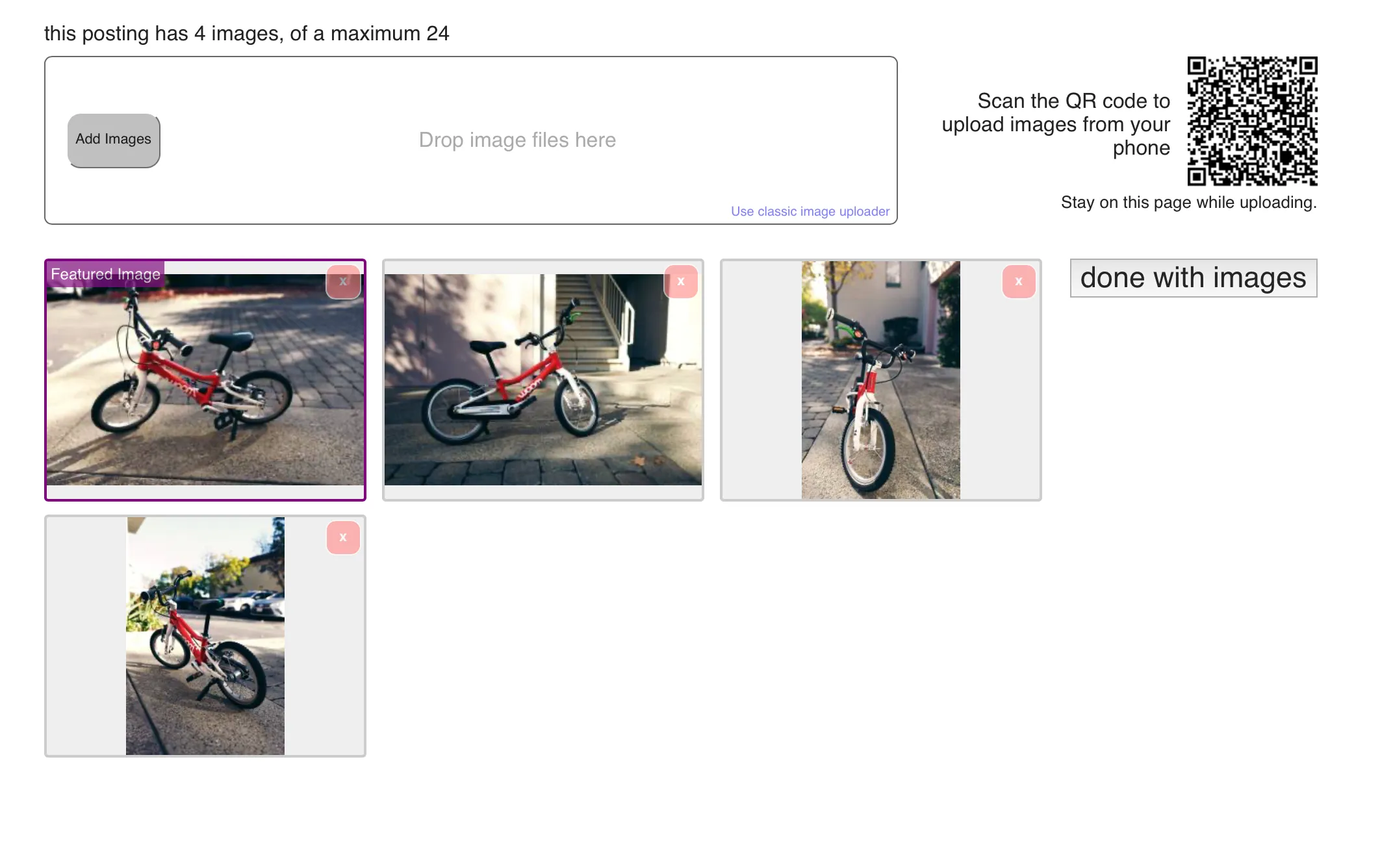

This approach isn’t novel, in fact, Craigslist uses something similar for uploading photos:

But SnapRTC is unique because it performs the exchange in a serverless way using WebRTC.

SnapRTC makes this easy to implement in your own forms by providing:

1. An open source JavaScript library for both the initiator side (the form) and the capture side (the remote device side).
2. An open source .NET signaling server that connects the two sides via WebRTC so the files are exchanged peer-to-peer and never transit through a backend server.

What does the flow look like?

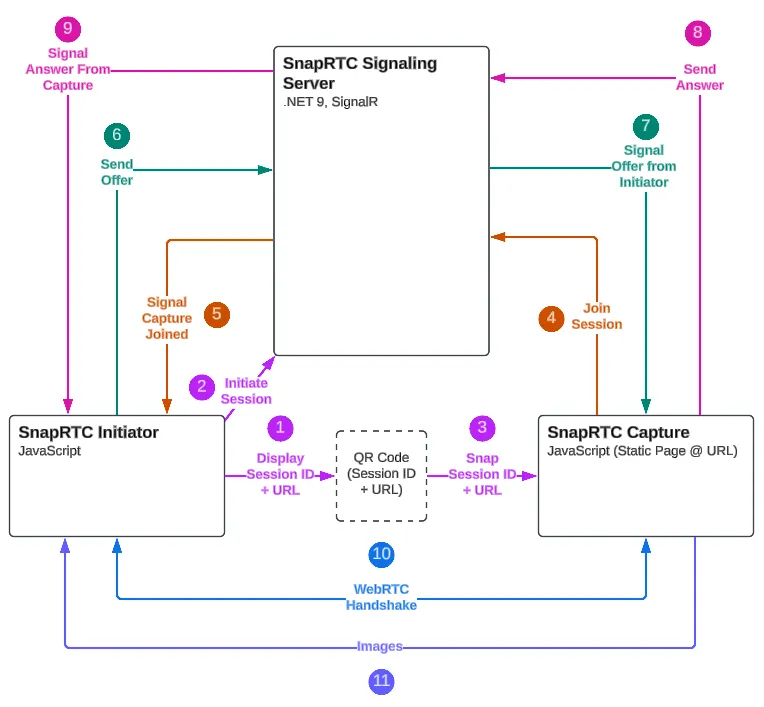

Here’s a high level overview of the flow and how the two sides connect.

1. At startup, the initiator generates a session ID and encodes it into a QR code.
2. The initiator also starts a connection to a SignalR server to register the session
3. From another device (“capture side”), the user scans the QR code
4. This initiates a connection to the signaling server via SignalR on the same session
5. The initiator is notified that the capture side has connected and generates an offer
6. The initiator transmits the offer to the capture side via the signaling server
7. The capture side receives this offer
8. The capture side generates an answer to the initiator and disconnects from the signaling server
9. The initiator receives the answer and disconnects from the signaling server
10. The two sides connect peer-to-peer via WebRTC using the offer and answer
11. The capture side transmits images to the initiator

Terminology

Before diving deeper, let’s get some terminology out of the way:

Term	Definition
Initiator	The side where the user initiates the session; where the form is.
Capture	The remote side where the user will perform the actual capture or acquisition of the content.
Offer	This is a WebRTC term for the configuration data for the initiator that we need to transmit to the capture side.
Answer	This is a WebRTC term for the configuration data for the capture side that we need to transmit to the initiator.
SignalR	This is a Microsoft ASP.NET runtime component that provides a brokered web socket channel. We use this channel to send the signaling data between the two sides to connect them.

Let’s look at a basic example 👇
